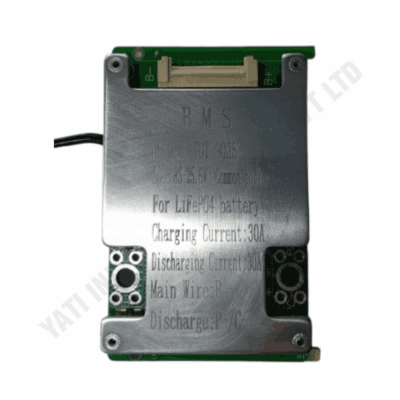

TDT LFP 8S-30AMP HARDWARE BMS

The TDT LFP 8S-30 AMP Hardware BMS is a protection and balancing board made for 8-cell (8S) LiFePO₄ battery packs with a nominal voltage of ~25.6 V. It’s a compact, hardware-based BMS that ensures battery safety, longevity, and reliable performance in medium-power applications.

Key Specifications

Battery Chemistry: Lithium Iron Phosphate (LiFePO₄ / LFP)

Series Configuration: 8S (8 cells in series) → ~25.6 V nominal

Continuous Discharge Current: 30 A

Peak Short-Term Current (10 sec): ~90 A

Over-charge Protect Voltage: ~29.2 V total pack

Over-discharge Protect Voltage: ~18.56 V total pack

Operating Temp. (Charge): ~0 °C to ~50 °C

Operating Temp. (Discharge): ~65 °C to ~75 °C

Size & Weight: Compact board (~72 g)
